Rocket/Aircraft Details
Name:	Evasive Action AMF
Aircraft Type:	Rocket
Manufacturer :	LOC Precision
Model:	Big Nuke

Aircraft Configuration Details

Dual Deploy

Single Deploy

Dual Deploy (Default/Original Configuration )

General Details
Constructed/Completed:	2011/08/20
Config. Status:	Defunct / Out of service
Dimensions
Height:	72.00in
Payload bay:	20.00in
Diameter:	5.54in
CP:	56.00in from tip
Dry weight :	5.70kg

Materials
Fins:	Fiberglass
Body:	Paper/Cardboard (heavy duty)
Misc. Parameters

* Onboard video
May require shear pins

Motor Mount Definition
Main Stage: 1 x 54mm, Retention ring (eg: Aeropack, Slimline)

Recovery Definition
Recovery event 1 configuration: Altimeter (Apogee) Backup: Altimeter (Apogee w/Delay) 1 x 30.00in. (Spill hole:6.00in.) Dome chute 1 x 24.00in. (Spill hole:4.00in.) Dome chute
Recovery event 2 configuration: Altimeter (Altitude) Alt. (Def.): 700.00ft Backup: Altimeter (Altitude) Alt. (Def.): 500.00ft 1 x 60.00in. (Spill hole:12.00in.) Dome chute

To comply with the 5kg redundancy limit, which AMF exceeds, a two-altimeter, two-double-recovery-event version of the rocket is being added for use with plugged "L" impulse motors.

Launch log

Flight

Alt.

Motor

Recovery

Status

Cert.

Notes

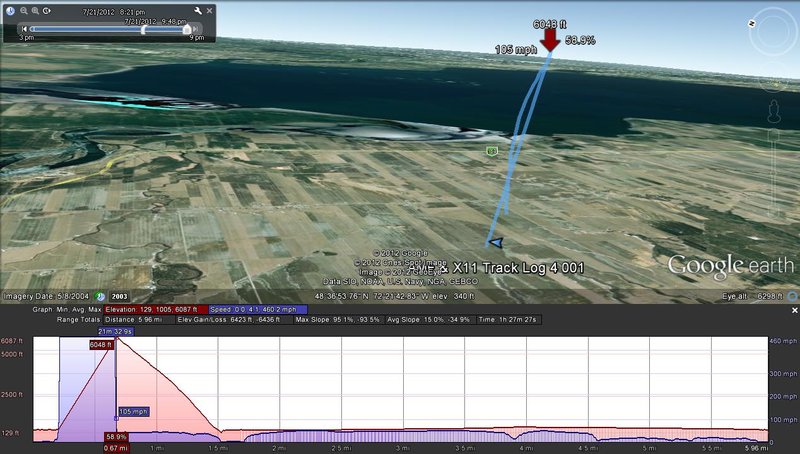

10. 2012/07/21 "Race"
Cfg.:Dual Deploy
Vipe 2012 St-Prime ( Lac St-Jean ),QC,CA

5610.99ft Altimeter

54mm CTI WT 2372-K-1440

Parachute dôme 30.00in Parachute dôme 24.00in Parachute dôme 60.00in

Success

Did not race, but launched great! Lost ~200mph and 800ft due to shaky takeoff.

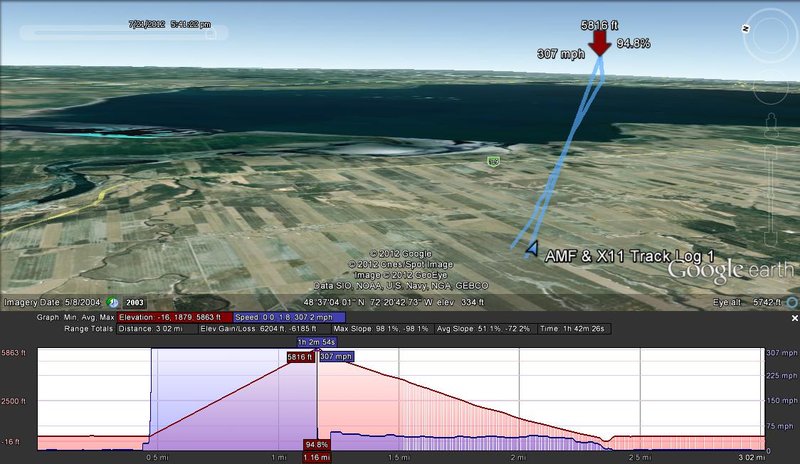

9. 2012/07/21 "Mile Breaker"
Cfg.:Dual Deploy
Vipe 2012 St-Prime ( Lac St-Jean ),QC,CA

5458.99ft Altimeter

54mm CTI CL DT 2398-K590

Dome chute 30.00in; Dome chute 24.00in Dome chute 60.00in

Success

Great flight... ok descent but lots of twirling and spinning.

8. 2012/05/20 "2012 Wakeup Call"
Cfg.:Dual Deploy
Fusée Fête 2012 St Pie de Guire,QC,CA

2615.00ft Altimeter

54mm Ces 1364-K454

Dome chute 30.00in; Dome chute 24.00in Dome chute 60.00in

Success

7. 2012/05/19 "Whte Thunder "Practice""
Cfg.:Dual Deploy
Fusée Fête 2012 St Pie de Guire,QC,CA

2637.00ft Altimeter

54mm CTI 1226-J760-16s

Dome chute 30.00in; Dome chute 24.00in Dome chute 60.00in

Success

6. 2011/10/09 "Comeback Flight"
Cfg.:Dual Deploy
Ciel D'Octobre St Pie de Guire,QC,CA

2302.00ft Altimeter

54mm Ces 1281-K360-13

Dome chute 60.00in w. 12.00in (spill)

Success

Overly curved trajectory, good deployment on both segments, but parachute failed to fully deploy due to tangle. Parachute remained in a stall for final descent. No notable damage to report.

5. 2011/08/27 "Maiden Dual"
Cfg.:Dual Deploy
5.4.3.To.Fu 2011 St Pie de Guire,QC,CA

4175.98ft Altimeter

54mm CTI 1679-K630-15s

Dome chute 30.00in Dome chute 60.00in

Fail (Recovery)

Maiden Dual-Chute Flight; Lost in a tree - retrieved with little damage 6 days later. Repairing for future flights.

4. 2011/07/31 "Really Fast K1200"
Cfg.:Single Deploy
VIPE 2011 St Prime,QC,CA

5518.01ft Altimeter

54mm Ces 2014-K1200-16s

Dome chute 60.00in

Success

Maximum impulse expected at construction. Flown single chute. Altimeter incorrectly reported supersonic speeds.

3. 2011/07/30 "K490 Night flight"
Cfg.:Single Deploy
VIPE 2011 St Prime,QC,CA

4995.01ft Altimeter

54mm Ces 1990-K490-16s

Dome chute 60.00in

Success

Flight run on single chute. Awesome night flight!

2. 2011/05/22 "First K Flight"
Cfg.:Single Deploy
Fusée-Fête 2011 St-Pie-de-Guire,QC,CA

4133.01ft Altimeter

54mm Ces 1635-K445-14s

Dome chute 60.00in

Success

Second AMF Flight

1. 2011/05/21 "Cert./Maiden AMF flight"
Cfg.:Single Deploy
St Pie
Fusée-Fête 2011 St-Pie-de-Guire,QC,CA

2004.00ft Altimeter

54mm Cesaroni 1016-J360-11s

Dome chute 60.00in

Success

Estimate Evasive Action AMF flight

Count: 10
