Excelsior Falconet II(C-223F) Aircraft Detail
   Information

   Launch Log
   Media

Web links, pictures, documents & more More media...
Rocket/Aircraft Details
Name: Excelsior Falconet II
Aircraft Type: Rocket
Manufacturer : Project Excelsior
Model: AT ARCAS based




Aircraft Configuration Details
    Excelsior Falconet II b

    Excelsior Falconet II a

Excelsior Falconet II b (Default/Original Configuration )
General Details
Constructed/Completed: 2011/08/21
Config. Status: Operational
Dimensions
Height: 54.50in
Payload bay: 18.00in
Diameter: 2.60in
CP: 49.00in from tip
Dry weight : 0.40kg
Materials
Fins: Plastic
Body: Paper/Cardboard

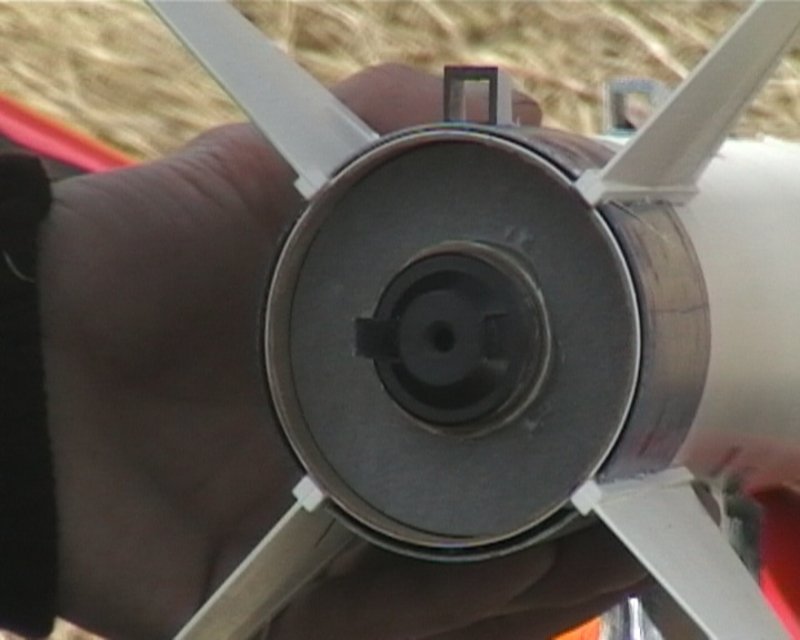

Motor Mount Definition
Upper Stage:
2 x 29mm, None/Friction fit

Lower Stage:
1 x 29mm, Hook

Recovery Definition
Recovery event 1 configuration:
Motor discharge
Tumble (no device)

Recovery event 2 configuration:
Motor discharge
1 x 30.00in. (Spill hole:6.00in.) Dome chute

Two SRB detaching via electronic switch-timer deployment. Long high power version
